"Wind Waker"

"Wind Waker"

5 String, Multiscale Bass Guitar

Sales Pitch:

     With a scale length starting at 34 inches on the G string and ending at 35.5" on the B, the string tension has a significantly improved feel over a standard single length bass, especially when down-tuning. The perpendicular fret being the 7th feels surprisingly at-home to players unfamiliar with multi-scale instruments. The triple cutaway design allows a third playing position when sitting, or the perfect "foot-on-the-monitor shredding" for ultimate photogenic opportunities.

Woods:

     The birdseye maple and walnut sandwich give a thumpy open tone that resonates thru the body of the player. Although walnut is a slightly heavier body wood, the slim ergonomic design doesn't feel heavy whatsoever and rather provides an incredible balance when sitting or standing.

Pickups - From Dimarzio:

     The hum-cancelling Ultra Jazz™ takes a traditional Fender® Jazz Bass® sound and really opens it up. Lows are deeper, highs are more percussive, and the mid-range is round but not muddy. Harmonic overtones jump off the strings. It’s also quick; with instant response to either fingers or pick-style playing. There’s only one word for this combination of qualities: “musical”.

     The appearance of the Ultra Jazz™ is traditional, but the wide dynamic range and frequency response of the hybrid magnetic structure allows both vintage and modern sounds. As with the Model J™, hum canceling is achieved with each coil sensing a pair of strings, rather than a stacked design; even with a relatively high DC resistance figure, the Ultra Jazz™ has very strong, percussive highs and clean lows.

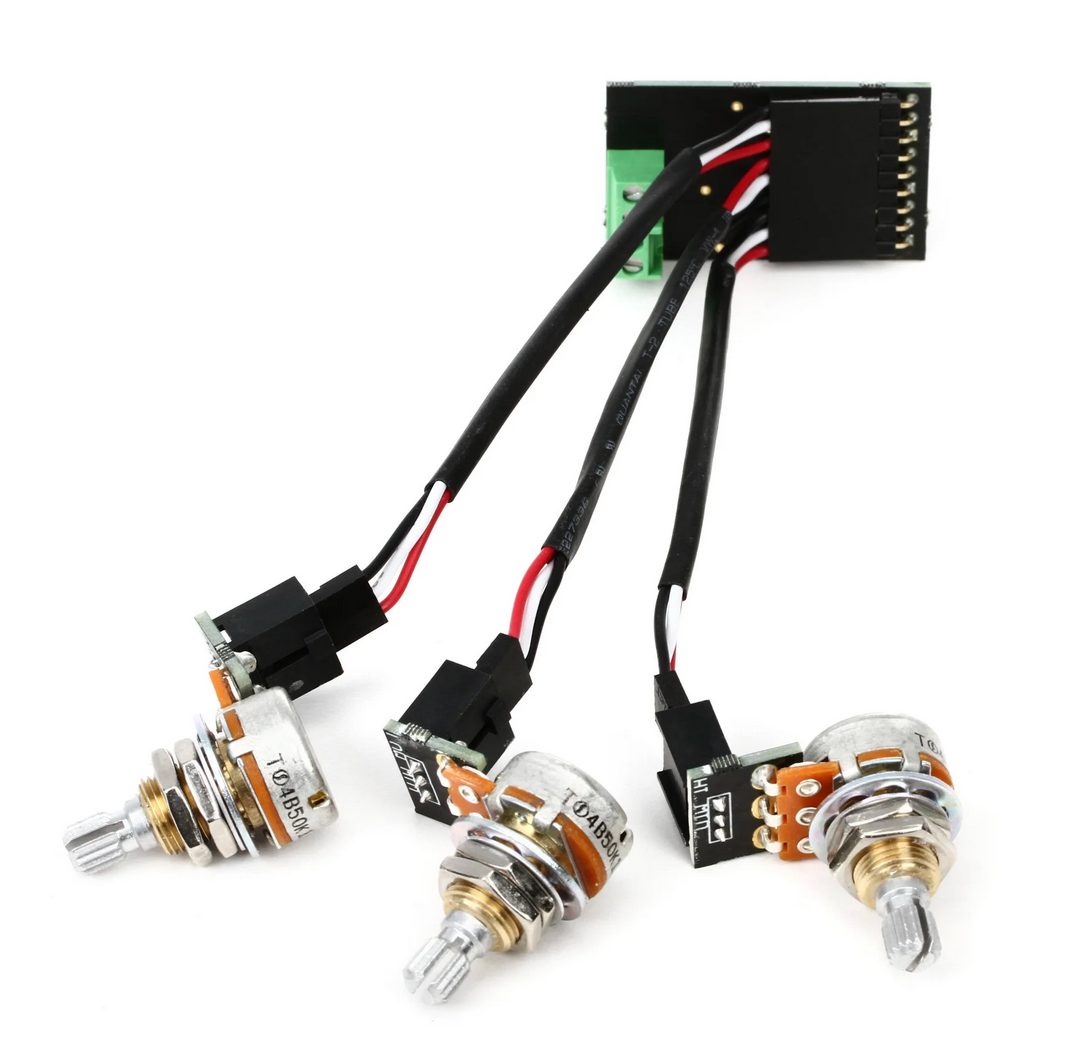

Preamp/EQ - From Darkglass:


     Darkglass Tone Capsule bass preamp system. Instead of a typical bass/mid/treble EQ configuration, the Tone Capsule system offers bass/mid/high-mid tone shaping, each with a +/-12dB range. The bass control is centered at 70Hz for low-end power, while the mid control centers at 500Hz for midrange growl and punch. The high-mid control is centered at 2.8kHz, allowing you to enhance presence and articulation without adding noise or unwanted highs.

Specs.

Scale Length 34"-35.5"
# of Strings 5
# of Frets 24
Fretboard Radius 12"
Neck Type Handcarved, C shape
Neck Width @nut: 45.2mm
@24th: 69.2mm
Neck Thickness @1st: 19mm
@12th 21mm
String Spacing @nut: 36.8mm
@bridge: 68.2mm
Body Thickness 1-5/8"
Neck Joint Bolt-on, deep access
Headstock Type 12 degree angle
Overall Length 45"
Weight 8 lbs 10 oz

Parts/Materials

Pickups Dimarzio Ultra Jazz neck
Dimarzio Ultra Jazz Bridge
Switching Darkglass Tone Capsule preamp system
Controls 3-band EQ (Bass 70Hz, Mid 500Hz, High-mid 2.8kHz); pickup blend control
Bridge Hipshot Solo
Tuners Hipshot Ultralite
Fret Material Jumbo(#150), Nickel Silver
Fret Markers Buffalo bone
Nut Material Buffalo bone
Trussrod 2-way adjustable
Body Wood Walnut, birdseye maple laminate
Neck Wood Eastern Rock Maple, walnut stripes
Fretboard Wood Birdseye maple
Finish Type Body: Hand rubbed oil
Neck: Hand rubbed oil, hard wax
