"Tael"

"Navi"

6 String Guitar

Sales Pitch:

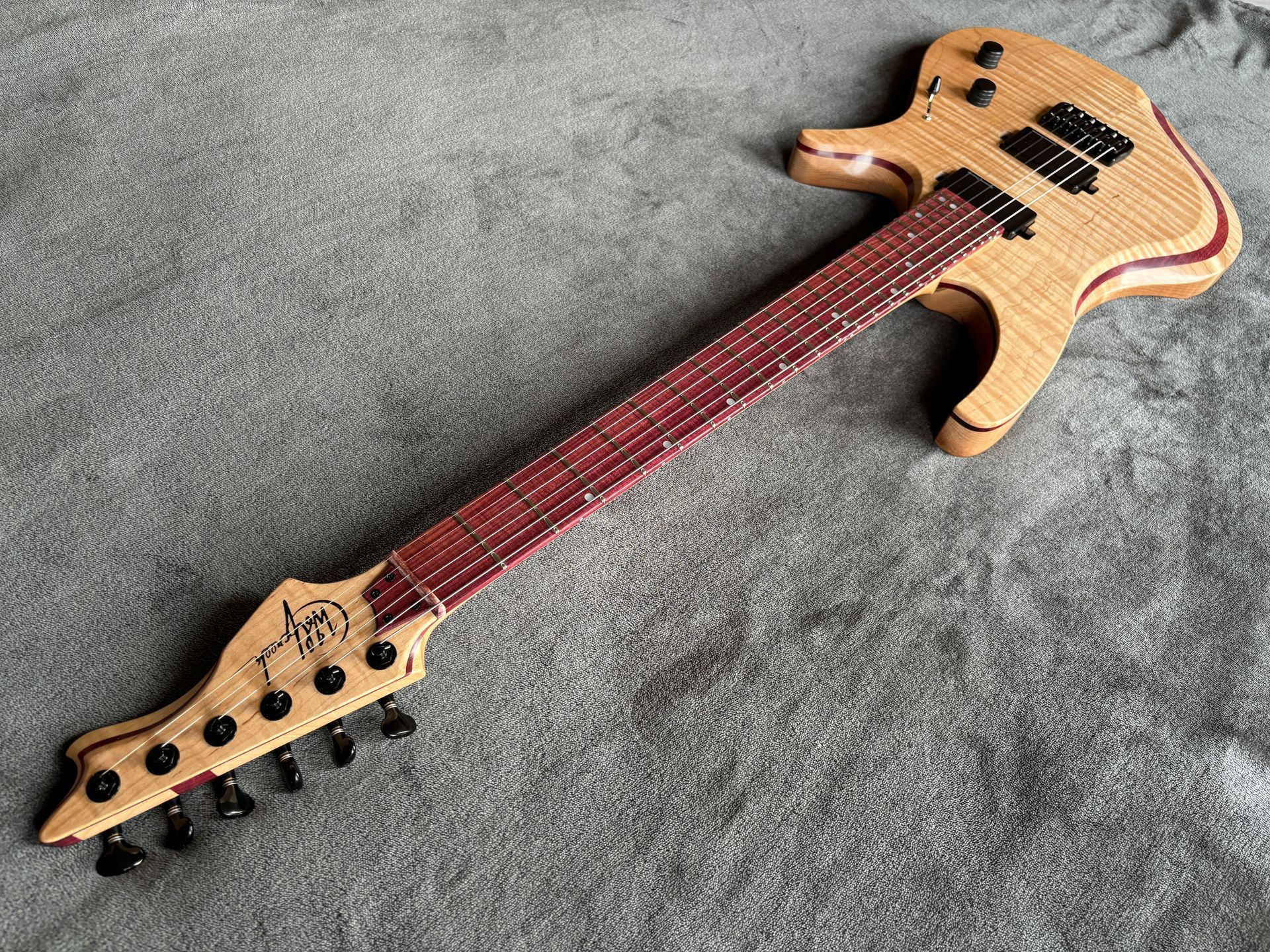

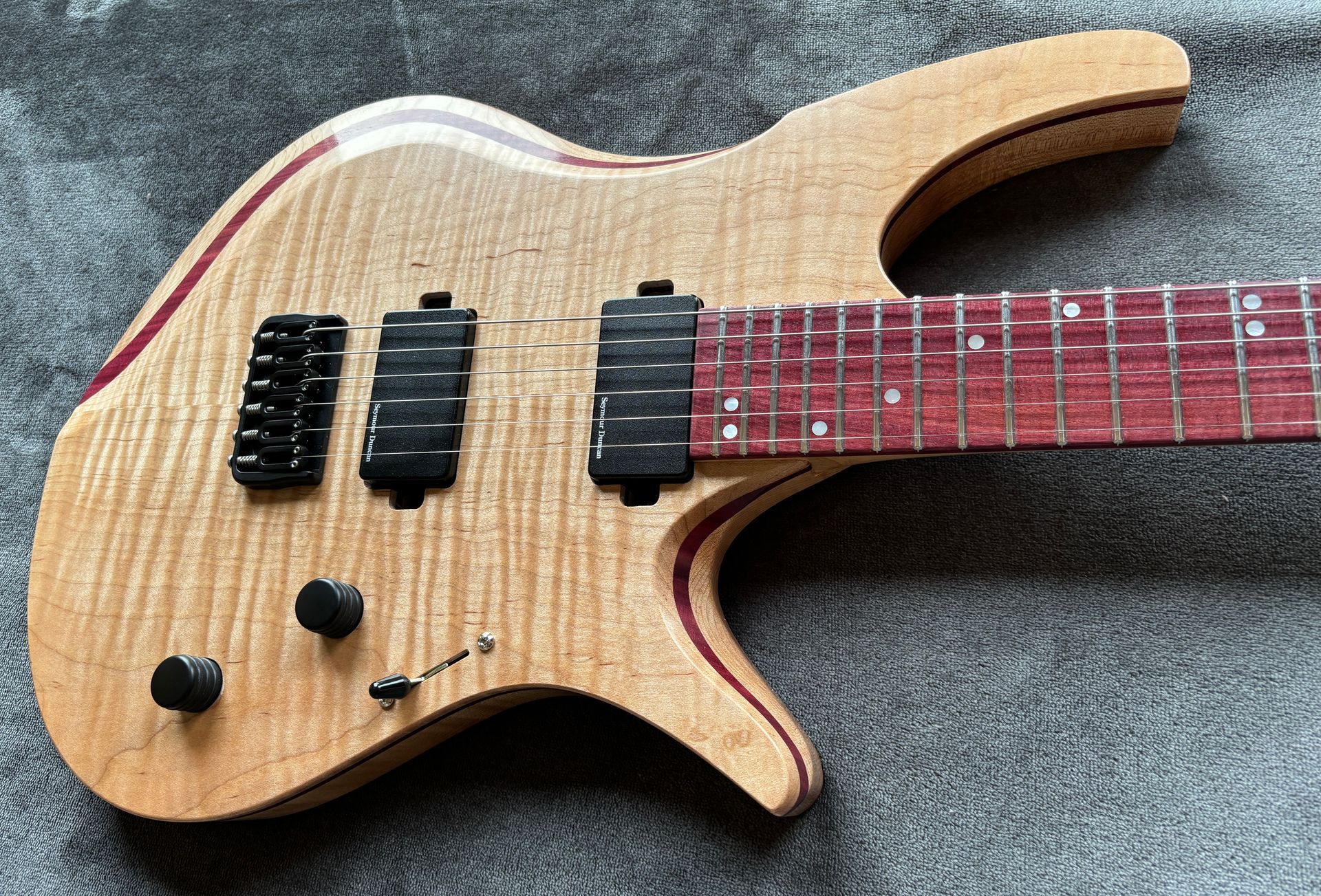

Designed to be simple and effortless with a fixed Hipshot bridge and 3-way switching using a set of Seymour Duncan active pickups. And with a body thickness of only 1.5" it's very comfortable to play for long periods of time. The guitar balances very well while sitting in both traditional(right leg) or classical(left leg) positions. The relatively light weight also makes it great for standing for long gigs. The guitar has a thin C shaped neck utilizing a conical radius fretboard, making it effortless to play up and down the neck with low action and zero fret buzzing.

Woods:

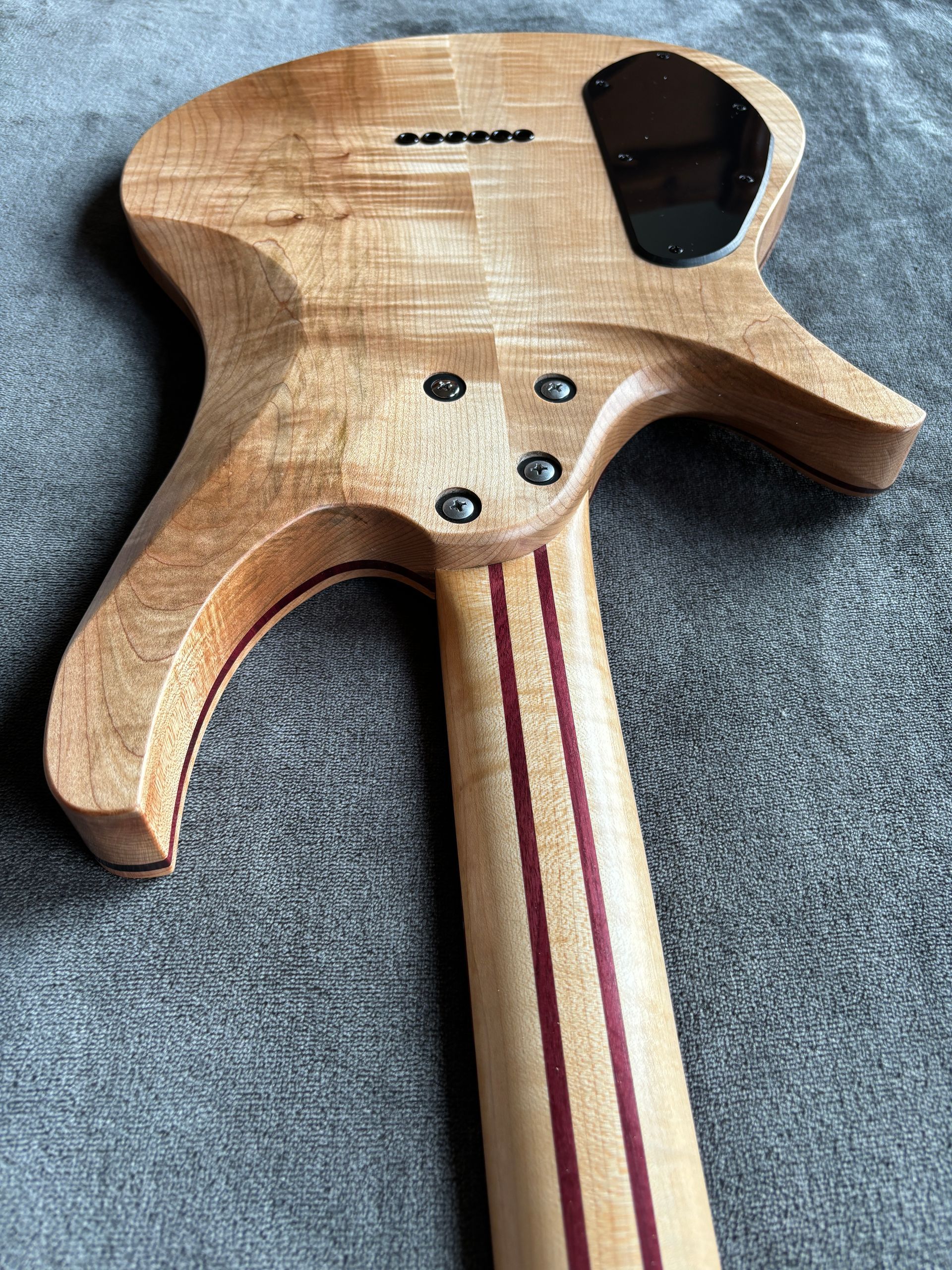

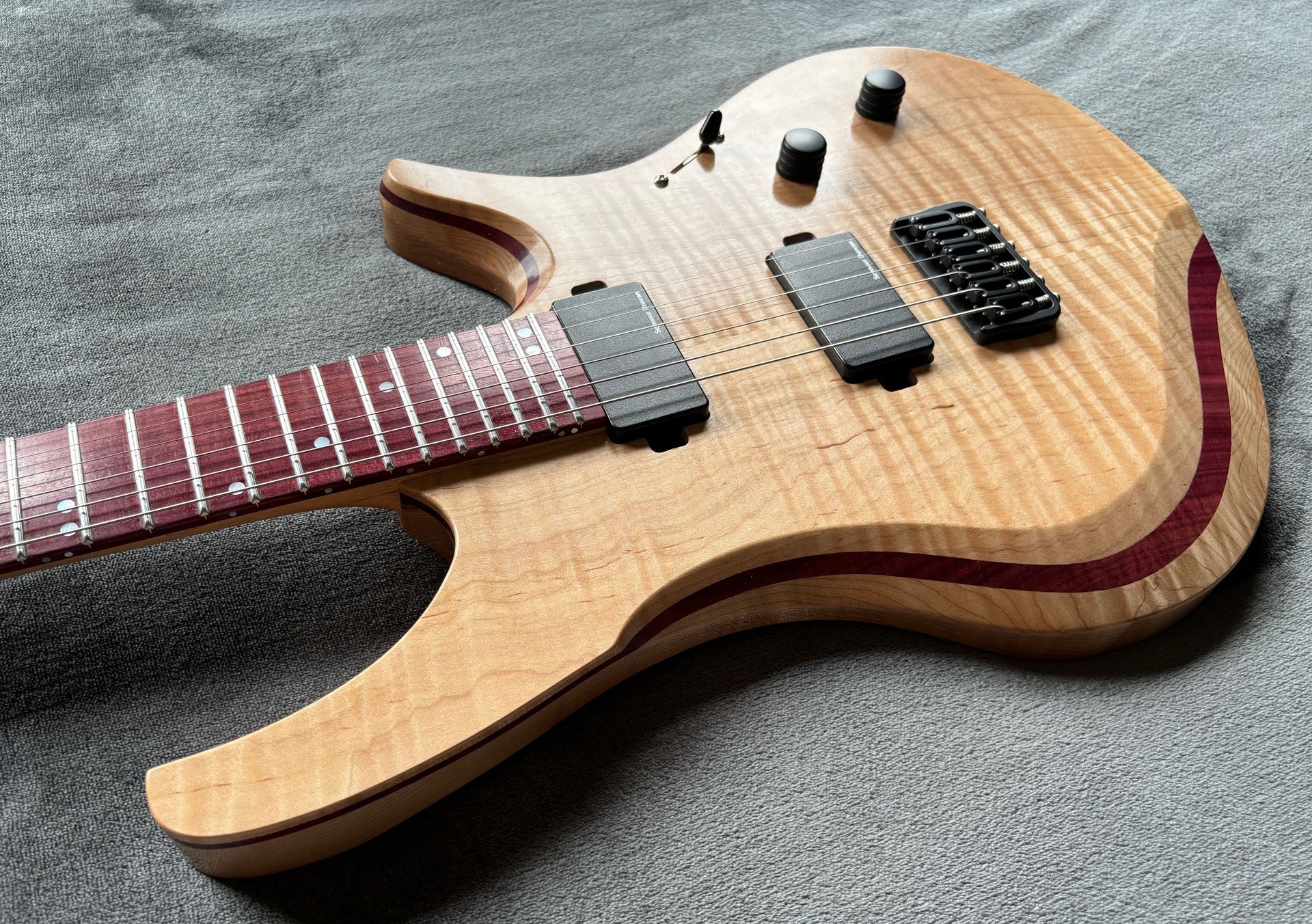

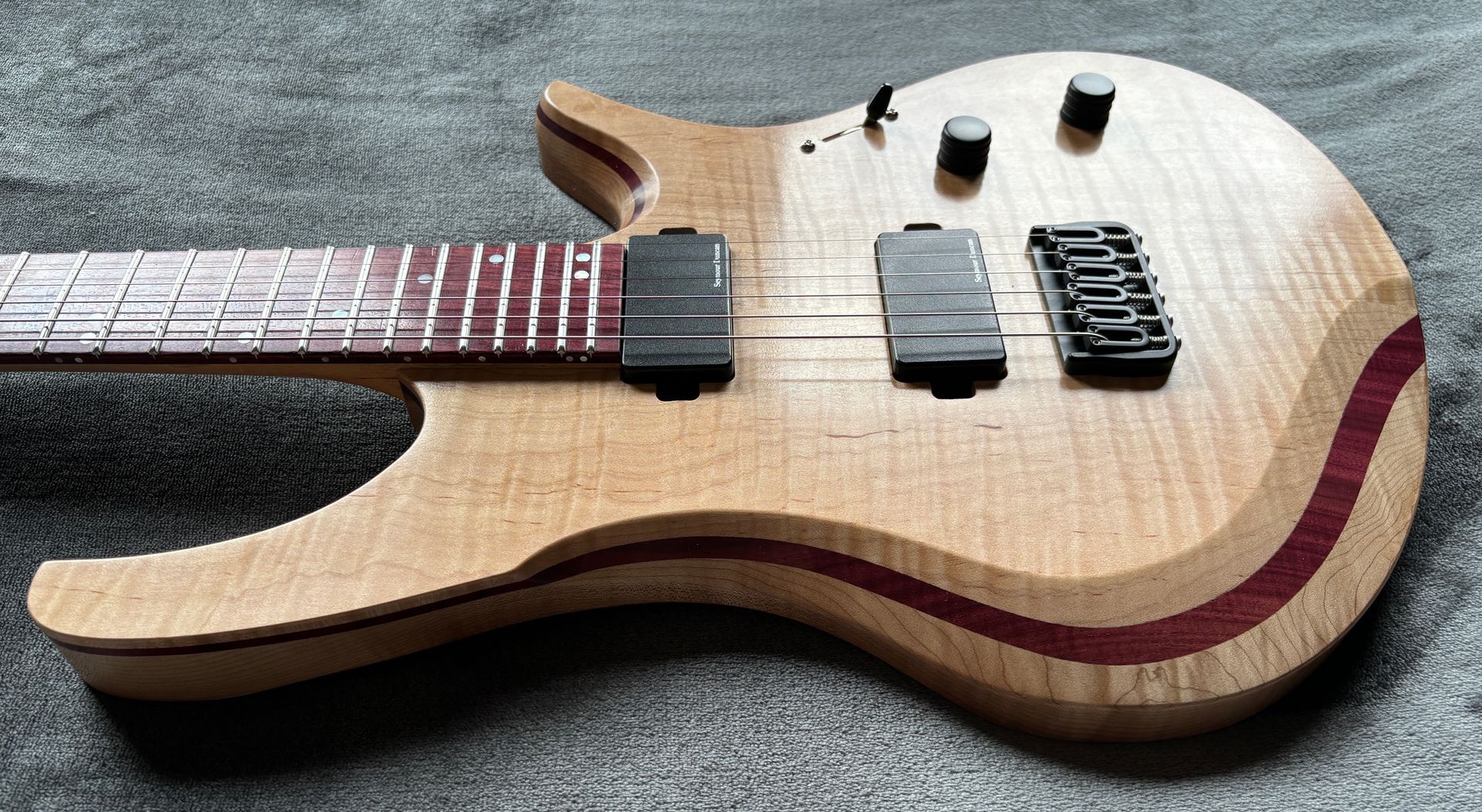

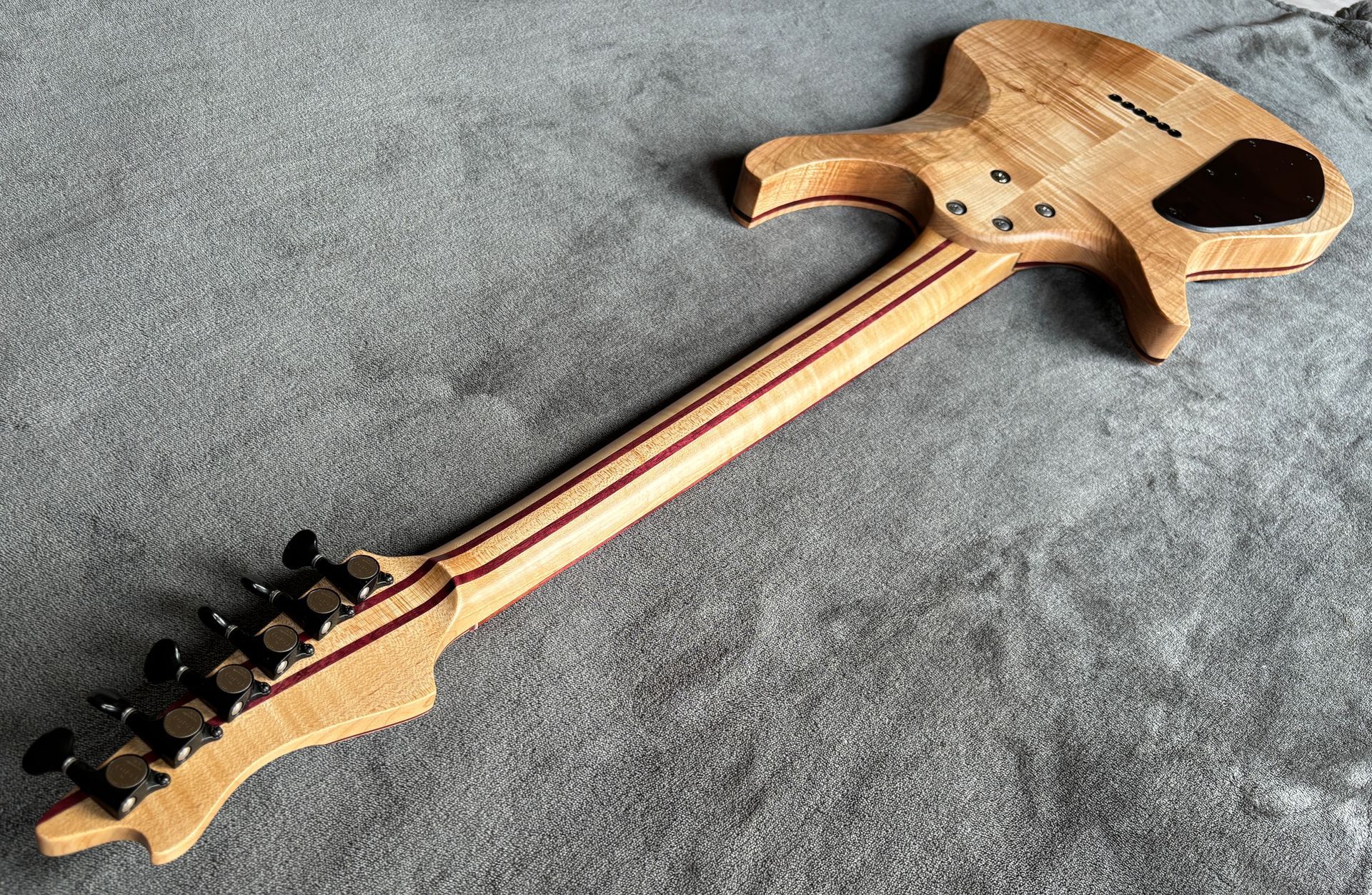

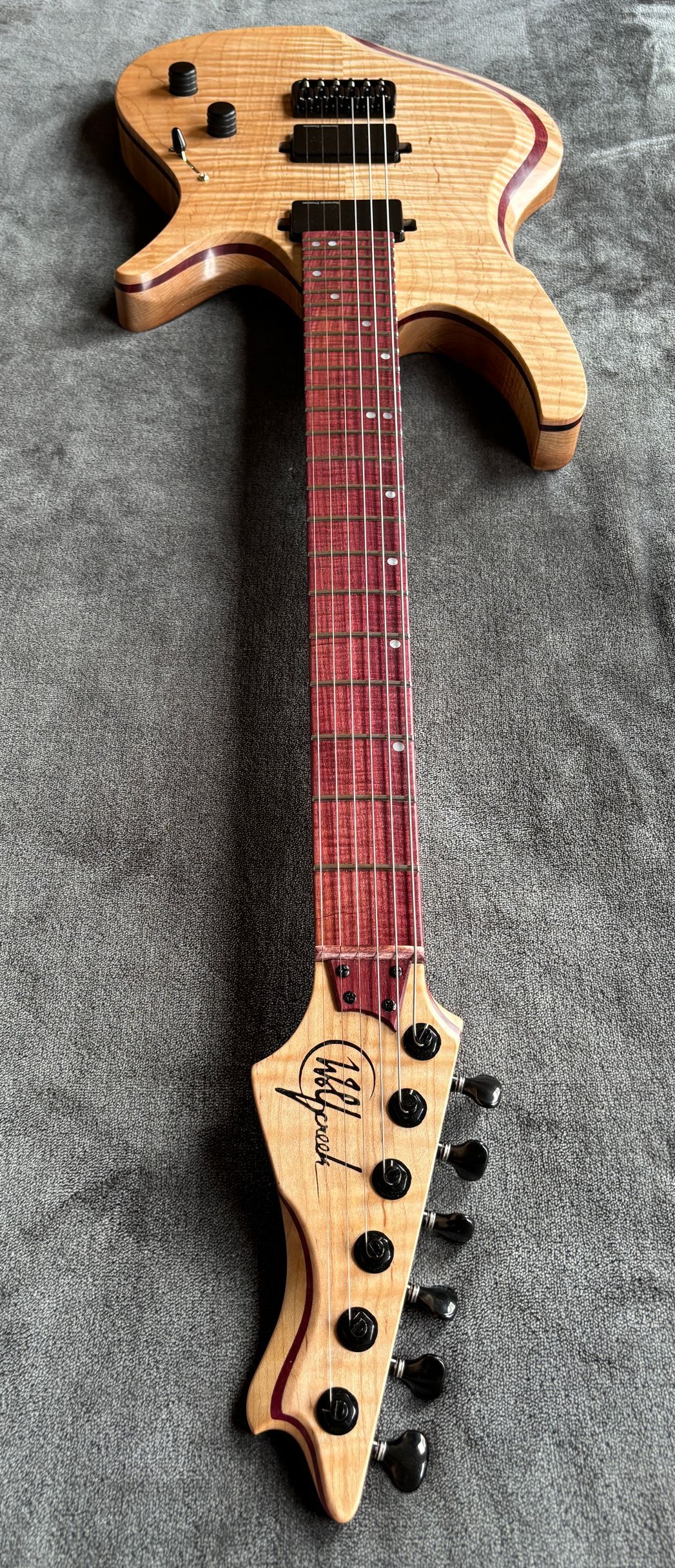

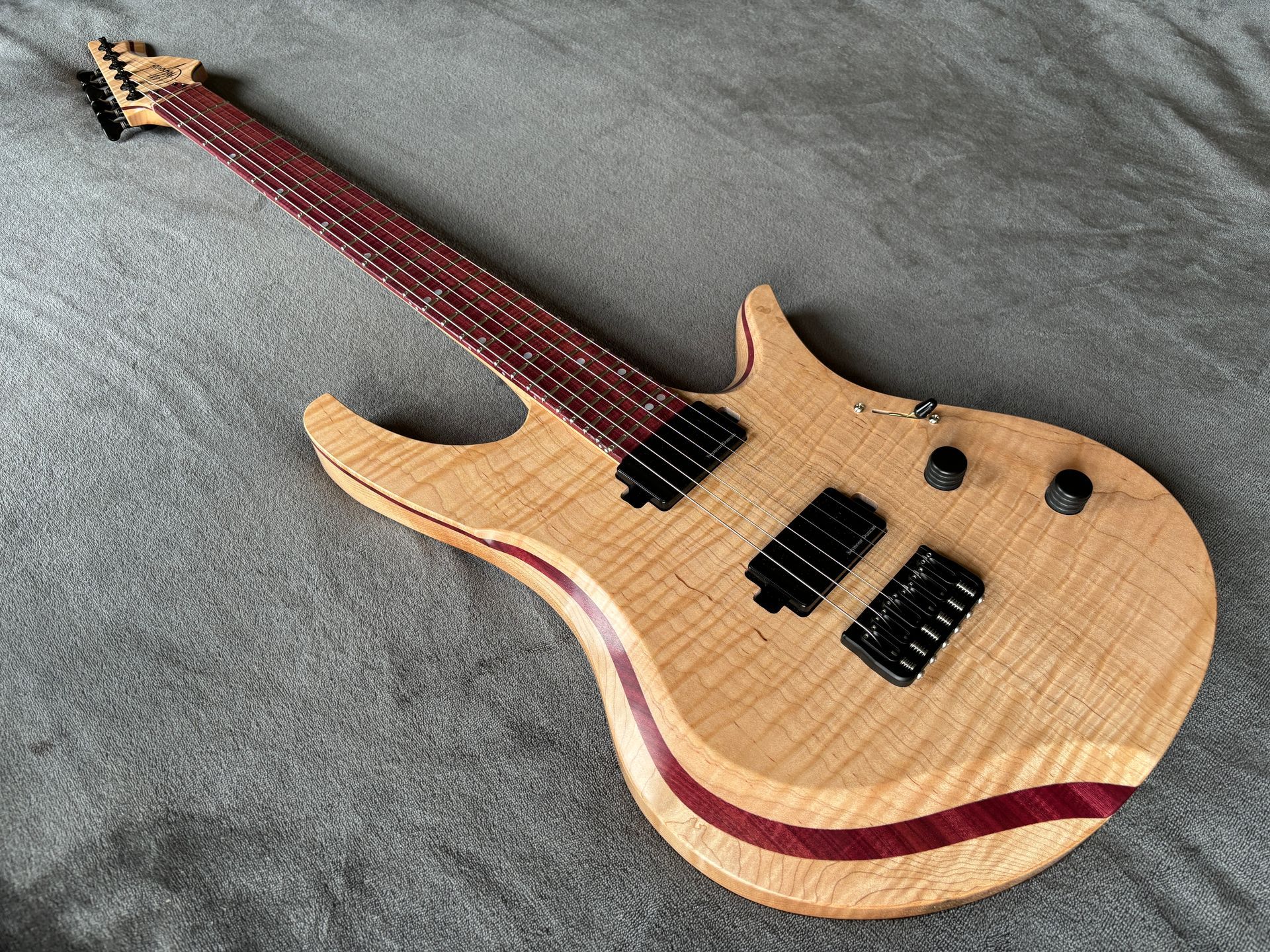

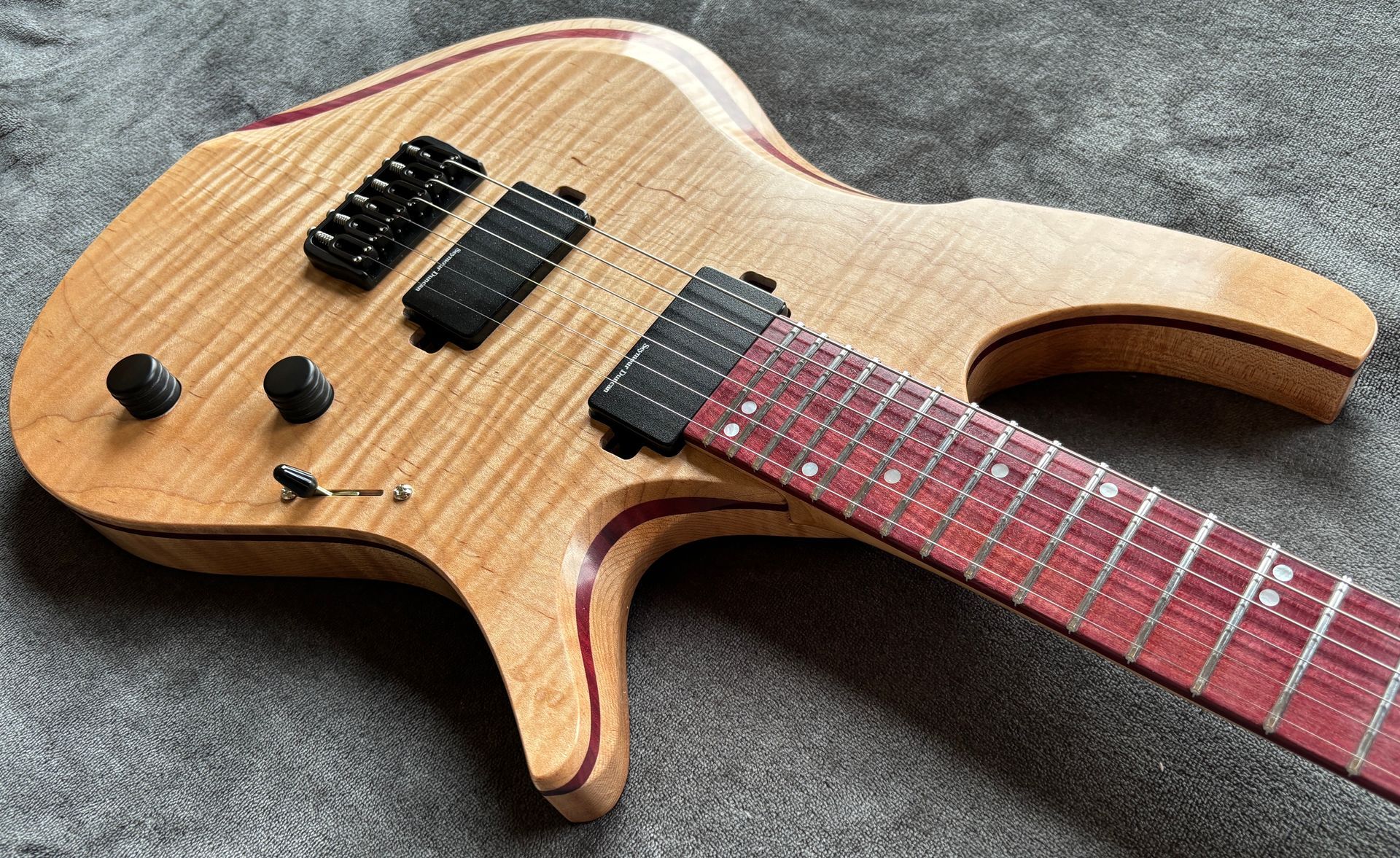

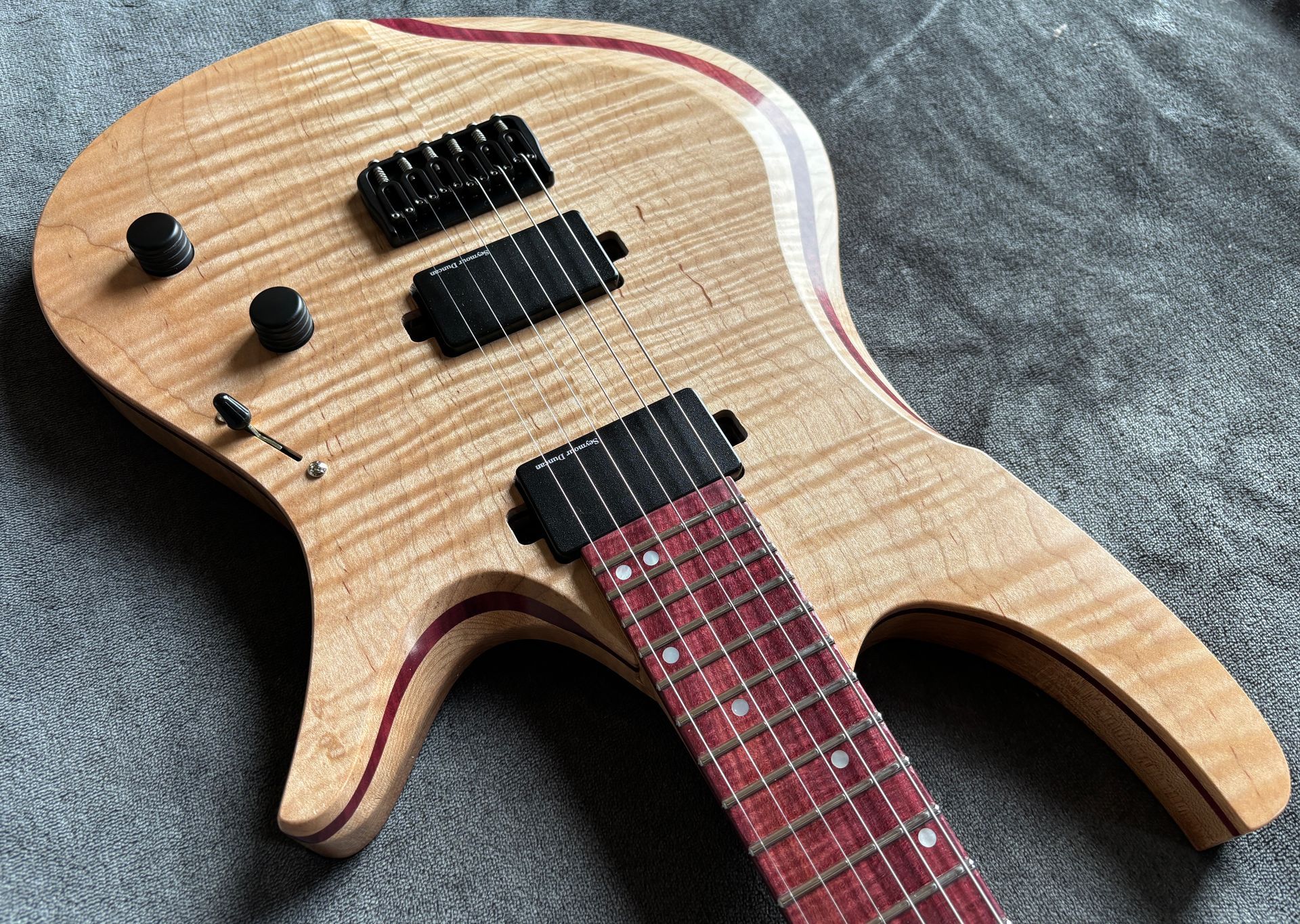

The curly soft maple body with purpleheart and curly maple double drop top gives the guitar a very bright attack without any absence of lows and mids. Eastern hard rock maple is used for the neck as well with purpleheart laminates for extreme solid stability. The purpleheart is highly flamed throughout the entire guitar(made from the same beautiful piece).

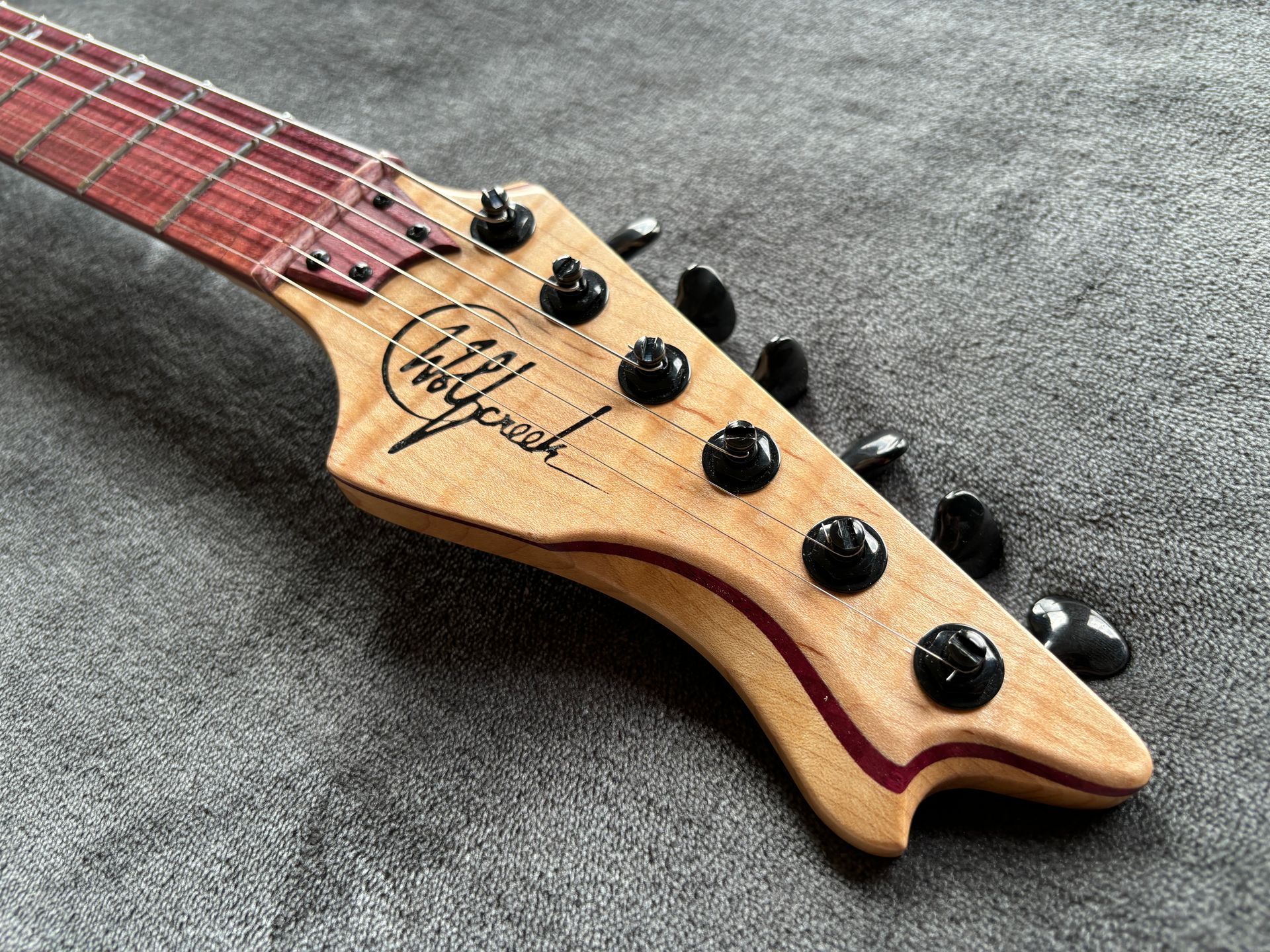

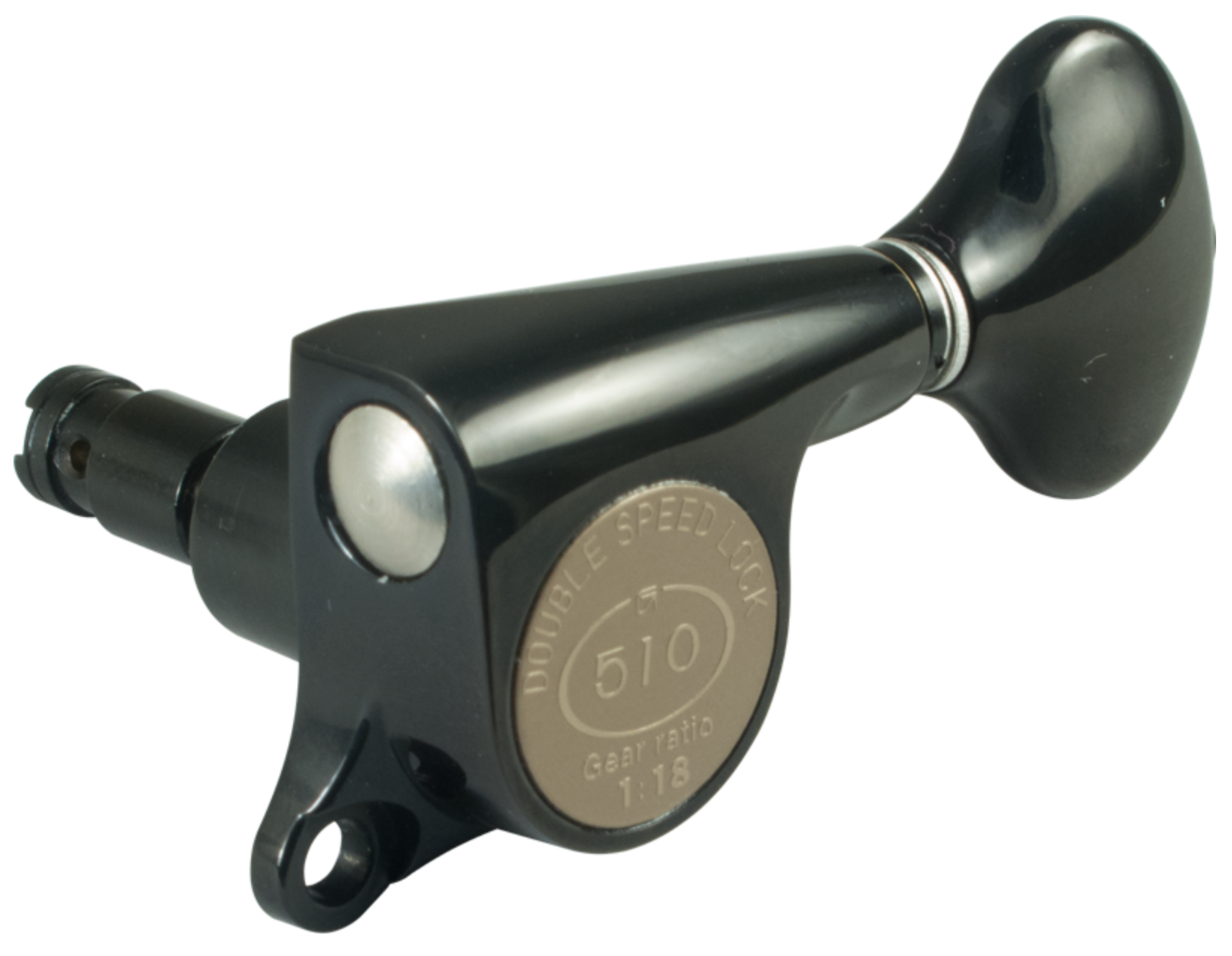

Tuners - From Gotoh:

Gotoh's sleek modern design with compact cast housings and sealed gears, plus Magnum Lock® string posts to help keep tremolo guitars in tune. The post automatically locks the string as you tune. Rock-Solid™ string posts eliminate looseness, for improved tuning stability.
- 18:1 gear ratio


Pickups - From Seymour Duncan:


Seymour Duncan AHB-1s Blackouts Active Humbuckers
Pickup Features:
* Active 9V-powered design
* Balanced inputs
* Low noise, high output
* Blade magnets for even string balance

* Magnet Material: Ceramic (bridge), Alnico V (neck)

Specs.

Scale Length 25.5"
# of Strings 6
# of Frets 24

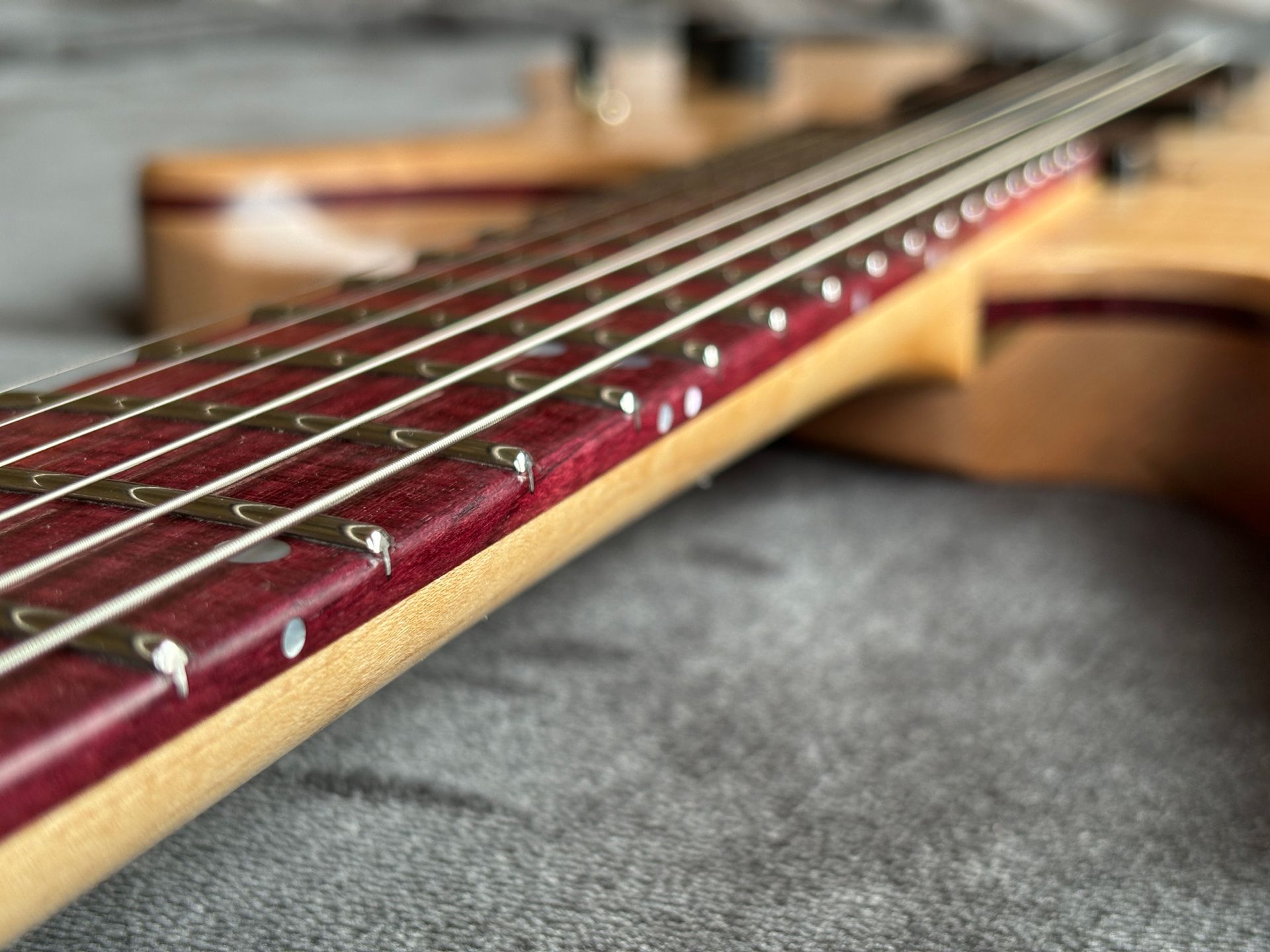

Fretboard Radius 10" - 16" Compound
Neck Type Handcarved, C shape
Neck Width @nut: 42.3mm
@24th: 56.3mm
Neck Thickness @1st: 19.5mm
@12th 20.75mm
String Spacing @nut: 35.3mm
@bridge: 52.4mm
Body Thickness 1-1/2"

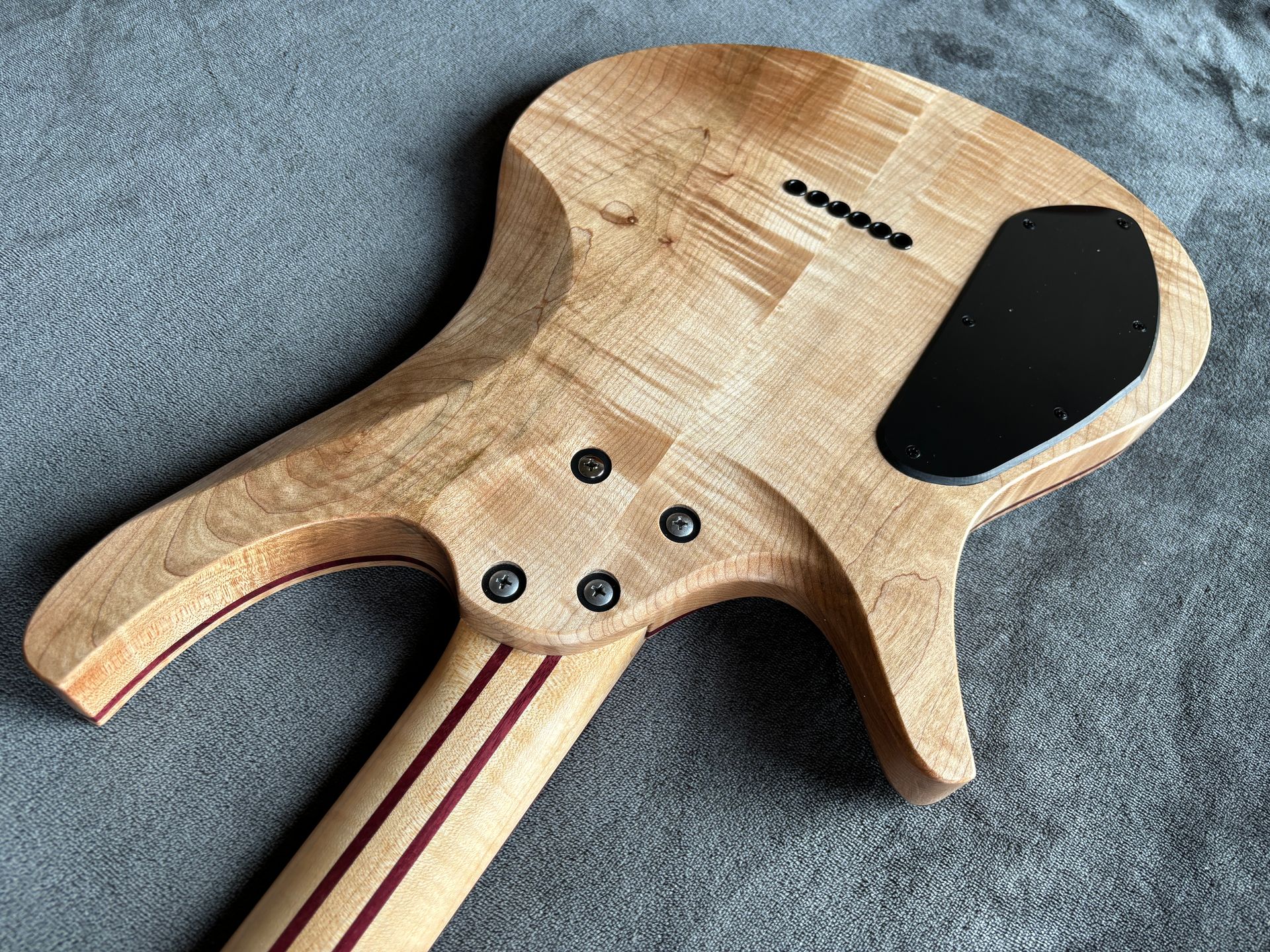

Neck Joint Bolt-on, deep access
Headstock Type 10 degree angle, w/ volute
Overall Length 38-1/2"
Weight 7 lbs 3.5 oz

Parts/Materials

Pickups Seymour Duncan AHB-1s Blackouts
Active Humbuckers
Switching 3-Way Switch
1. Neck 2. Both 3. Bridge
Bridge Hipshot Fixed Bridge
Tuners Gotoh 510
Fret Material Jumbo(#150), Stainless steel
Fret Markers Mother-Of-Pearl
Nut Material Dyed Bone
Trussrod 2-way adjustable
Body Wood Curly Maple, Flame Purpleheart/Curly Maple
Neck Wood Rock Maple, Flame Purpleheart Laminates
Fretboard Wood Flame Purpleheart
Finish Type Body: Polymerized Tung Oil
Neck: Polymerized Tung Oil
